RDZO6XT
RDZO6XT.DWNG.pngRDZO6XT

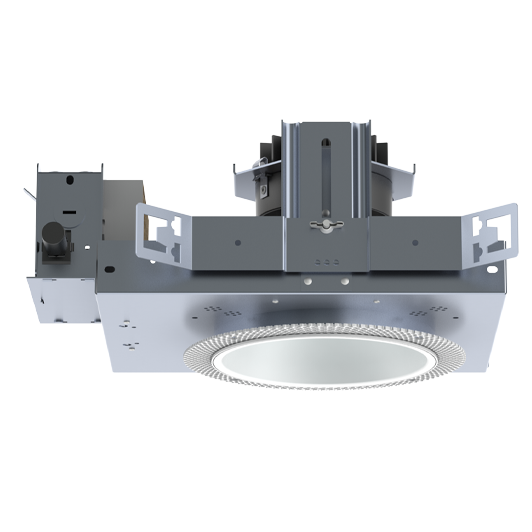

6" Xt Round Downlight N-Line - 5000Lm
Versatile 6" Round aperture recessed LED downlight with flangeless trim and a wide range of lumens and optical controls. Two-stage optical system for smooth light distribution and focus control. Quick change LED module with interchangeable optics for job site adjustment and fixture maintenance. Shallow plenum design. Tool-less driver and j-box access. Posi-lock trim retention torsion springs.
Resources
Families
- A Spec
Trim Type
- Flangeless
Lumens
- 1000 Lm
- 1300 Lm
- 2000 Lm
- 3000 Lm
- 4000 Lm
- 5000 Lm
Distribution
- Medium
- Narrow
- Very Narrow
- Very Wide
- Wide
Shape
- Round
Aperture
- 6 In.
Installation Type
- New Construction
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
- DALI
- DMX
- ELV
- Forward Phase
- Lutron Athena
- MLV
Ratings & Compliance
- Buy American Act (BAA)
- Made in America
- Non-IC
- Wet
Lamp Source
- LED
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 83 CRI
- 98 CRI
Watts
- 11.1 w
- 15.0 w
- 23.7 w
- 34.6 w
- 39.9 w
- 54.0 w
Efficacy
- 66 lm/w
- 68 lm/w
- 72 lm/w
- 75 lm/w
Listings
- ETL
- UL
Warranty
- 5 yr
Voltage
- 120 V
- 277 V
Dimming Range
- 1%
- 10%
- < 1%
- Non-Dimmable
