SS4NMO, SS4NMI, SS4NMR
SS4DNMO - NC.png
SS4DNMI - IC.png
SS4DNMR - RT.png
SS4NMR.DWNG.pngSS4NMO, SS4NMI, SS4NMR

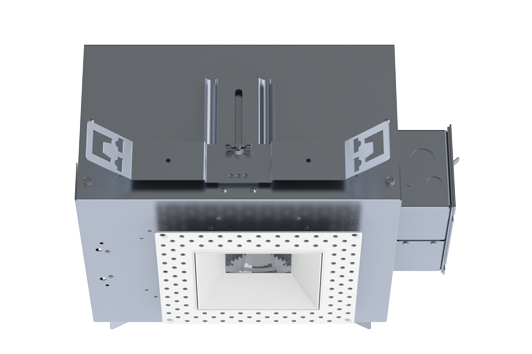

4" Xt Square Deep Downlight N-Line - 4000Lm
Spectrum’s A Spec 4" recessed square downlight series features a 2" regressed trim and variety of options for accent and general illumination. Precision Die-formed 20 gauge galvanized steel housing and integral junction box with (3) 5/8", (3) 7/8" and (2) 1 1/8" knockouts. Junction box capacity: 8 12AWG rated for 90 °C. Tool-less driver and junction box access for ease of maintenance. Posi-loc trim rentention springs for 5/8"-1" ceiling thickness. Use PR2 for up to 2" thick ceiling. For thicker ceilings consult factory
Resources
SAFI4XT, SAZI4XT, SDIF4XT, SDZI4XT, SS4NMO, SS4NMI, SS4NMR, SS4, NMO, NMI, NMR, SAF, SAZ, SD, SDI, SDZ, SAFI4, SAZI4, SDIF4, SDZI4
Families
- A Spec
Trim Type
- Adjustable
- Flange
- Wall Wash
Lumens
- 1000 Lm
- 1300 Lm
- 2000 Lm
- 3000 Lm
- 4000 Lm
Distribution
- Medium
- Narrow
- Very Narrow
- Very Wide
- Wide
Shape
- Square
Aperture
- 4 In.
Installation Type
- New Construction
- Retrofit & Remodel
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- DMX
- ELV (Trailing Edge)
- Forward Phase
- Lutron Athena
- MLV
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- IC Rated
- Made in America
- Non-IC
- Wet
Lamp Source
- LED
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 83 CRI
- 98 CRI
Watts
- 11.1 w
- 15.0 w
- 23.7 w
- 34.6 w
- 39.9 w
Efficacy
- 65 lm/w
- 66 lm/w
- 74 lm/w
Listings
- ETL
- UL
Materials
- Aluminum
- Steel
Trim Finish
- Black
- Bronze
- Matte White
Warranty
- 5 yr
Voltage
- 120 V
- 277 V
Dimming Range
- 1%
- 10%
- < 1%
- Non-Dimmable
