SD6

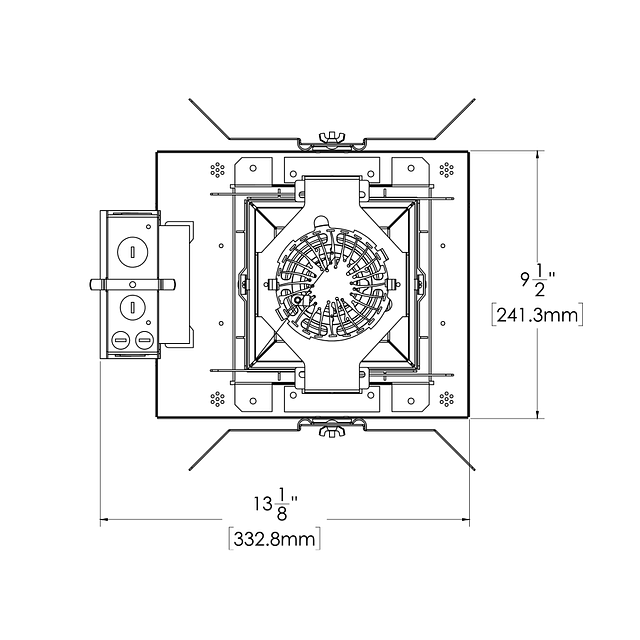

SD6_DRAWING.pngSD6
6" Square Downlight, Wall Wash & Adjustable
A versatile 6” square aperture recessed LED fixture, offered in downlight, accent, and wall wash. Available in flanged and flangeless, with a wide range of lumen outputs and optical control options to suit a variety of applications.
Resources
SD6, SAFO6XT, SAFO6, SAF06XT, SAF06, SAF, SAZO6, SAZO6XT, SAZ06, SAZ06XT, SAZ, SDFO6, SDFO6XT, SDF06, SDF06XT, SDF, SDZ06, SDZO6XT, SDZ06, SDZ06XT, SDZO6, SDZO6XT, SDZ06, SDZ06XT, SDZ, SWFO6, SWFO6XT, SWF06, SWF06XT, SWF, SWZO6, SWZO6XT, SWZ06, SWZ06XT, SWZ, SD, SD6, 6" RECESSED, 6" SQUARE, SQUARE RECESSED, 83-71015, square, recessed, SDFO6PC, SAFO6PC, SWFO6PC, SDZO6PC, SAZO6PC, SWZO6PC
Families
- A Spec
Trim Type

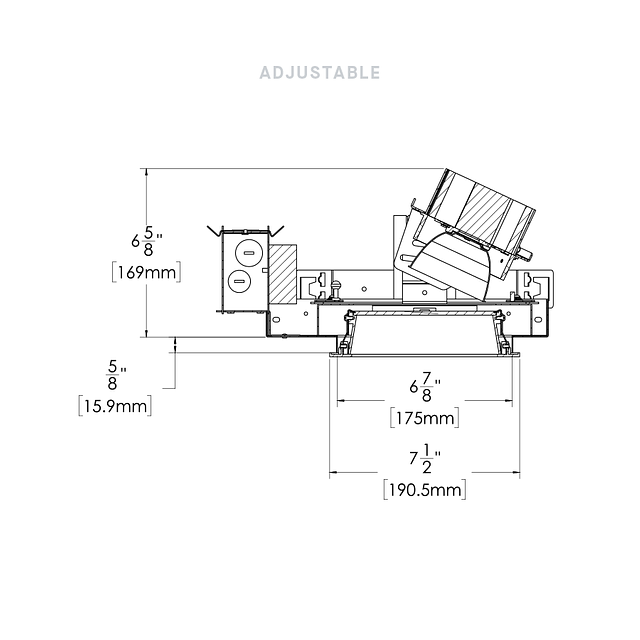

- Adjustable

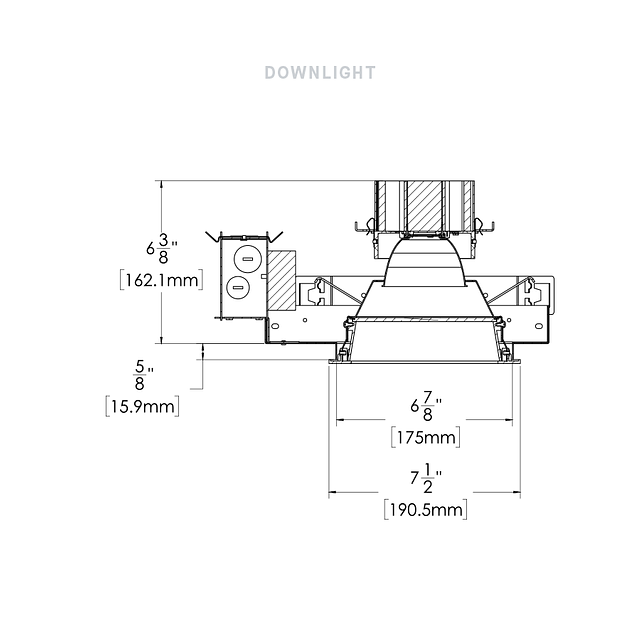

- Downlight
- Flange
- Flangeless

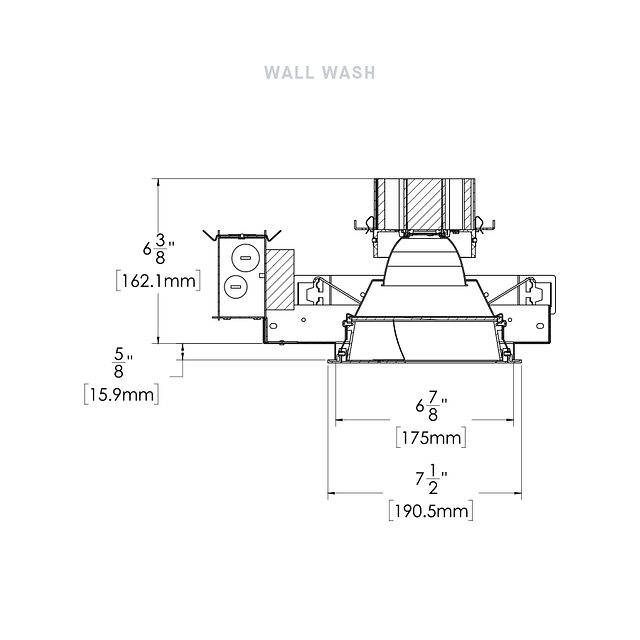

- Wall Wash
Shape
- Square
Aperture
- 6 In.
Emergency Options
- Integral EM Battery
Adjustability
- 360 Rotation
- Tilt Optics
Dimming Protocol
- 0-10 V
- ELV (Trailing Edge)
Ratings & Compliance
- Build America Buy America (BABA)
- Made in America
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80 CRI
- 90 CRI
Warranty
- 5 yr
Voltage
- 120 V
- 277 V
Dimming Range
- 1%
