SWFO4XT

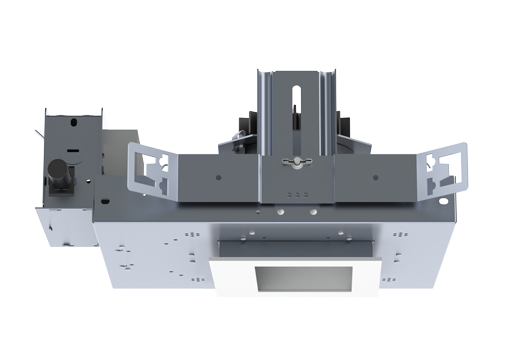

4" Xt Square Wall Wash - 4000Lm

Versatile 4" Square aperture recessed LED wall wash with a wide range of lumens and control options. Two-stage optical system for smooth light distribution and focus control. Quick change LED module with interchangeable optics for job site adjustment and fixture maintenance. Shallow plenum design. Tool-less driver and j-box access. Posi-lock trim retention torsion springs. See SWZO4 series for trimless plaster or wood ceiling.
Specification Sheet

Resources

Families

  • A Spec

Trim Type

  • Flange
  • Wall Wash

Lumens

  • 1000 Lm
  • 1300 Lm
  • 2000 Lm
  • 3000 Lm
  • 4000 Lm

Distribution

  • Very Wide

Shape

  • Square

Aperture

  • 4 In.

Installation Type

  • New Construction

Emergency Options

  • Integral EM Battery

Dimming Protocol

  • 0-10 V
  • DALI
  • DMX
  • ELV
  • Forward Phase
  • MLV

Ratings & Compliance

  • Buy American Act (BAA)
  • Made in America
  • Non-IC
  • Wet

Lamp Source

  • LED

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K

CRI

  • 83 CRI
  • 98 CRI
