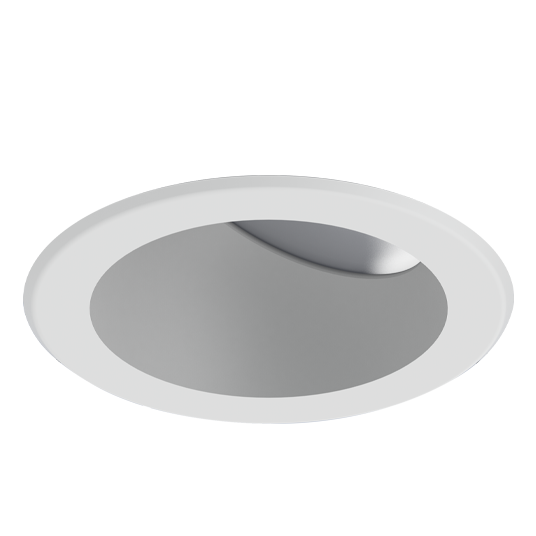

IF03RMF & IF03RSF
3" Round Downlight Series - 2012 Lm
Housings
New Construction, IC New Construction, Super Shallow 4" Deep IC New Construction, Remodel Construction
Trims
Downlight, Pinhole, Adjustable, Wall Wash
Versatile shallow plenum 3" round recessed LED luminaire features downlight, adjustable accent, wall wash and pinhole downlight trim options with new construction, insulated ceiling and retrofit housings. Two-stage optical system for smooth low glare light distribution. Zhaga International Standard LED module for ease of maintenance and replacement. Shallow plenum design. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets. Expandable bar hangers with horizontal range of 14.2"-26", and vertical adjustment of 1.75" for Non-IC housing and 2.325" for IC housings. Posi-lock trim retention springs. Integral 0.625" collar, works with up to 1" ceiling. For thicker ceilings consult factory.
New Construction, IC New Construction, Super Shallow 4" Deep IC New Construction, Remodel Construction
Trims
Downlight, Pinhole, Adjustable, Wall Wash
Versatile shallow plenum 3" round recessed LED luminaire features downlight, adjustable accent, wall wash and pinhole downlight trim options with new construction, insulated ceiling and retrofit housings. Two-stage optical system for smooth low glare light distribution. Zhaga International Standard LED module for ease of maintenance and replacement. Shallow plenum design. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets. Expandable bar hangers with horizontal range of 14.2"-26", and vertical adjustment of 1.75" for Non-IC housing and 2.325" for IC housings. Posi-lock trim retention springs. Integral 0.625" collar, works with up to 1" ceiling. For thicker ceilings consult factory.
Resources
Families
- Infinium
Trim Type
- Adjustable
- Downlight
- Lensed
- Pinhole
- Wall Wash
Lumens
- 2012 Lm
Distribution
- Medium
- Narrow
- Very Narrow
- Wide
Shape
- Round
Aperture
- 3 In.
Installation Type
- New Construction
- Retrofit & Remodel
Emergency Options
- Integral EM Battery
Dimming Protocol
- 0-10 V
- ELV
- MLV
Static LED Color
- Full Spectrum
Special Programs
- Quick Ship
Ratings & Compliance
- Buy America
- Buy American Act (BAA)
- Chicago Plenum
- IC
- Made in America
- Wet
Lamp Source
- LED
CCT
- 2200K
- 2700K
- 3000K
- 3500K
- 4000K
