SGW5LEDFX

Discontinued Product

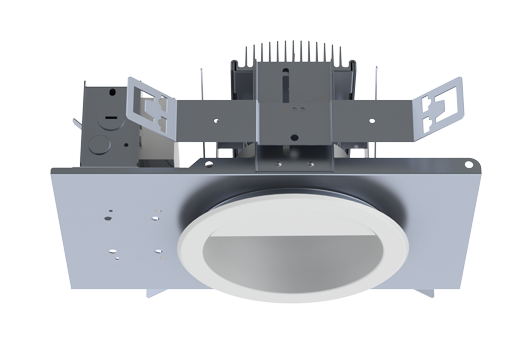

5" Fx Round Wall Wash - 4000Lm

FX series 5" diameter recessed wall wash, designed for general wall washing with smooth light distribution. Shallow plenum construction. Wide range of apertures. Companion retrofit and remodel fixtures available. Auto dim thermal protector for long term reliability. Zhaga international standard LED module for ease of maintenance and future replacement. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets, fit a variety of mounting bars. Posi-lock trim retention torsion springs. Integral 5/8" (.625) collar, works in ceiling up to 1." Deep. BH27 Standard mounting bars included. Intended for Non-IC new construction.
Specification Sheet

Resources

Options & Accessories


Trim Type

  • Flange
  • Wall Wash

Lumens

  • 1000 Lm
  • 1500 Lm
  • 2000 Lm
  • 3000 Lm
  • 4000 Lm

Shape

  • Round

Aperture

  • 5 In.

Installation Type

  • New Construction

Emergency Options

  • Integral EM Battery

Dimming Protocol

  • 0-10 V

Ratings & Compliance

  • Buy American Act (BAA)
  • LM79
  • LM80
  • Made in America
  • Non-IC
  • Wet

Lamp Source

  • LED

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K

CRI

  • 80 CRI

Watts

  • 9 w
  • 13 w
  • 17 w
  • 25 w
  • 35 w

Listings

  • ETL
  • UL

Materials

  • Aluminum
  • Steel

Warranty

  • 5 yr

Voltage

  • 120-277 V

Dimming Range

  • Non-Dimmable
