SGE9LEDOS DSRB
Discontinued Product

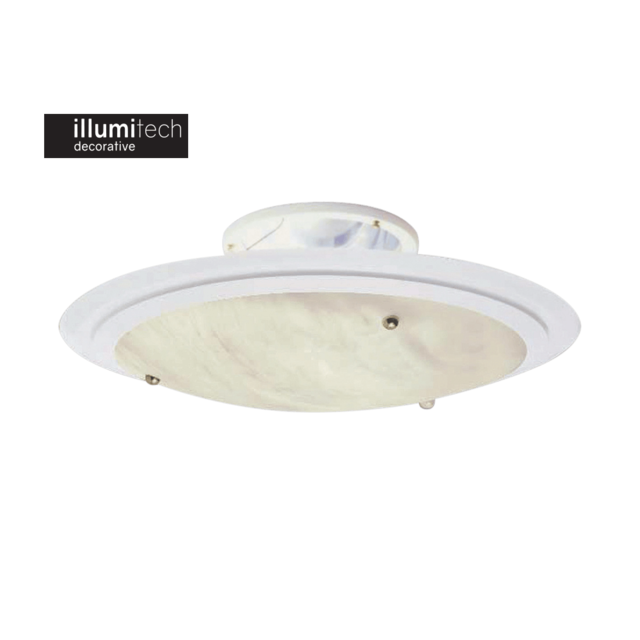

9" Illumitech Os Round Downlight Suspended Bowl - 4500Lm
9" LED Downlight with Suspended Deco Bowl and outside ring in 18" and 24" diameters. Decorative Bowl creates ceiling brightness and visual appeal. Stainless steel adjustable cable. Two-stage optical system for smooth light distribution. Zhaga International Standard LED module for ease of maintenance and replacement. Shallow plenum design. Tool-less LED module, driver and J-Box access. Multi-Bar mounting brackets. BH27 Standard mounting bars included. Posi-lock trim retention torsion springs. Integral 0.625" collar.
Resources
SGE9LEDOS DSRB
Families
- Illumitech
Trim Type
- Decorative Elements
- Downlight
- Flange
Lumens
- 1100 Lm
- 2000 Lm
- 3000 Lm
- 4500 Lm
Shape
- Round
Aperture
- 9 In.
Installation Type
- New Construction
Dimming Protocol
- 0-10 V
- DALI
- DMX
- ELV (Trailing Edge)
- Forward Phase
- MLV
Ratings & Compliance
- Buy American Act (BAA)
- LM79
- LM80
- Made in America
- Non-IC
- TM21
Lamp Source
- LED
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 84 CRI
Watts
- 11 w
- 20 w
- 28 w
- 41 w
Listings
- ETL
- UL
Materials
- Aluminum
- Steel
Trim Finish
- Matte White
Warranty
- 5 yr
Voltage
- 120 V
- 277 V
Dimming Range
- 1%
- 10%
- < 1%
- Non-Dimmable
