PRDCH16SGV

Discontinued Product

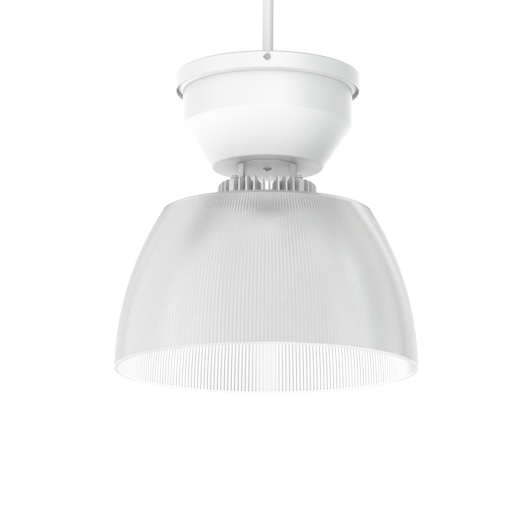

16" Prismatic - 5500Lm

Resources
16" Lumen Max GV series designed for performance high and mid level ceiling illumination. Prismatic refractor provides horizontal and vertical distribution. Shallow design fits a variety of applications. Shallow surface or pendant (DCH) for lower ceiling heights and wide distribution. Single-stage optical system for smooth light distribution. 80 CRI minimum. Consult factory for high CRI or special applications. LED module and driver designed for ease of maintenance and replacement. Posi-lock refractor retention ring will absorb shocks and impact. Optional safety cable. Variety of optical lenses and mounting methods.

Families

  • High Bay
  • Lumen Max
  • Mid Bay

Lumens

  • 1500
  • 2700
  • 3700
  • 5500

Diameter

  • 16

Emergency Options

  • Remote EM Battery

Ratings & Compliance

  • Buy American Act (BAA)
  • Made in America

Lamp Source

  • LED

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K

CRI

  • 80

Color / Finish

  • Bronze
  • Gloss Black
  • Matte Black
  • Matte White
  • Silver

Watts

  • 10
  • 18
  • 26
  • 39

Efficacy

  • 139
  • 142
  • 144

Listings

  • ETL
  • UL

Materials

  • Acrylic
  • Aluminum
  • Die-Cast Aluminum
  • Polycarbonate

Warranty

  • 5 yr

Voltage

  • 120-277 V
  • 347 V
